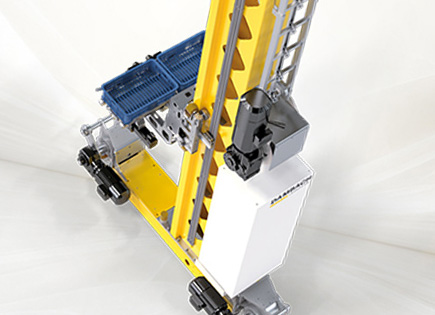

In modern Automated Storage and Retrieval Systems (AS/RS), efficiency is the lifeline of operations. As demand for throughput in e-commerce and cold chain logistics skyrockets, the horizontal travel speeds of stacker cranes have leaped from the traditional 120 m/min to 240 m/min, and even up to 300 m/min. As the core component for load-bearing and power transmission, the travel wheel’s performance directly dictates the system's high-speed stability and safety.
When a stacker crane thunders through an aisle at speeds approaching 5 m/s, the travel wheel must overcome three critical physical hurdles:
Hysteresis Heating: At high rotational speeds, the polyurethane material undergoes high-frequency compression and recovery as it contacts the rail. If the material’s dynamic internal friction is too high, heat builds up rapidly. Once internal temperatures exceed 80°C, standard polyurethane softens, debonds, or even suffers physical meltdown.
Instantaneous High Acceleration: High-speed stacker cranes typically require acceleration rates between 0.5 – 1.5 m/s². This places immense demand on the coefficient of friction; the wheel must provide maximum grip to prevent slippage during precise start-stop positioning.
Dynamic Balance: The higher the linear velocity, the more any minor mass deviation is magnified into violent vibration. This not only compromises positioning accuracy but also significantly shortens the lifespan of motors and gearboxes.
Core Technical Specifications
Our high-speed stacker crane wheels utilize a NDI (Naphthylene Diisocyanate) based polyurethane system, specifically formulated for high-speed cycles, outperforming traditional TDI/MDI materials:
Performance Metric | Standard Polyurethane Wheel | High-Speed Series (Pro) |
Max. Operating Speed | 120 m/min | 300 – 360 m/min |
Hardness (Shore A) | 90 – 93 | 95 – 98 |
Heat Build-up | High | Ultra-Low |
Compression Set | ≤25% | ≤10% (Prevents "flat spots" during downtime) |
Applicable Acceleration | ≤0.5m/s² | Up to 1.5m/s² |
Key Product Highlights
1. Nano-Scale Dynamic Balancing
Every high-speed wheel undergoes rigorous dynamic balancing before leaving the factory, ensuring radial runout is controlled within ±0.1 mm at maximum RPM. This minimizes mast sway at the 30-meter peak when the crane is cruising at 300 m/min.
2. Advanced Hub-to-Tire Bonding
We utilize a multi-stage chemical pre-treatment process to enhance the molecular bond between the polyurethane and the steel/aluminum hub. This ensures zero debonding and zero chunking, even under the extreme shear forces generated by emergency braking.
3. Optimized Rolling Resistance Coefficient
By optimizing the molecular chain structure, we have reduced rolling resistance by 20%. This translates to lower energy consumption for drive motors or the ability to achieve higher terminal speeds using existing power configurations.
Application Scenarios
E-commerce Fulfillment Centers: Handling ultra-high throughput during peak seasons.
Tobacco & Pharmaceuticals: Meeting strict requirements for smooth operation and ultra-low noise.
-25°C Cold Storage: Specialized formulas ensure the material remains flexible and maintains grip without cracking in sub-zero environments.
Stop settling for frequent maintenance and debonding issues. Switch to our High-Speed Series and reduce your downtime by up to 40%. [Request a Quote]
