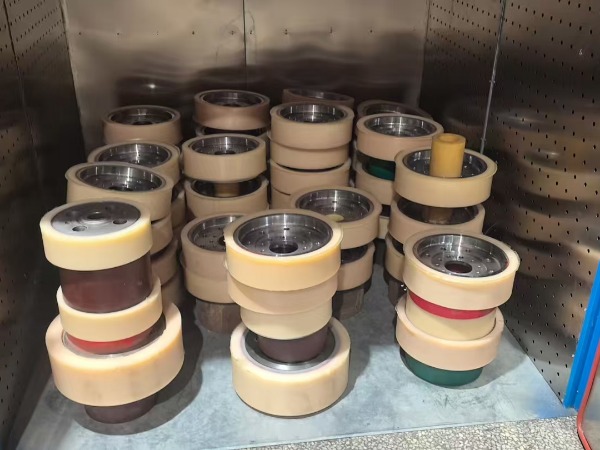

High-Speed Stacker Crane Wheels are critical components for the driving and load-bearing systems of Automated Storage and Retrieval Systems (AS/RS). In modern smart warehousing, stacker cranes must perform frequent, high-speed starts, sudden braking, and high-intensity reciprocating movements. Consequently, exceptional comprehensive performance is demanded from their travel wheels.
The following is a detailed overview of High-Speed Stacker Crane Wheels, covering their core materials, technical features, structural designs, and application advantages:
Core Materials & Manufacturing Process
High-Speed Stacker Crane Wheels are typically engineered by bonding a high-strength metal core with a high-performance polyurethane elastomer tread using specialized composite techniques:
1. Tread Material (High-Performance Polyurethane): Generally made from premium polyurethane elastomers specifically developed for high dynamic loads (such as Vulkollan or equivalent high-density NDl/PPDI modified polyurethanes). This material features extremely low rolling resistance, excellent wear resistance, and outstanding resistance to heat build-up, effectively preventing debonding or chunking under 24/7 high-speed operations.
2. Wheel Core Material (High-Strength Steel/Steel Casting): The wheel cores are typically made of high-strength structural steel, forged steel, or precision steel castings, which undergo strict heat treatment and precision machining. Compared to aluminum alloys, steel casting cores can withstand much greater vertical loads and intense starting torques, ensuring no deformation under long-term high-stress environments.
Key Technical Features
1. Excellent High-Speed & High-Load Capacity: Modern high-speed stacker cranes usually operate at horizontal speeds of 180 m/min to 240 m/min or higher. This product perfectly adapts to such high linear speeds while maintaining high load-bearing capacity, resulting in low dynamic temperature rise.
2. Low Rolling Resistance & Energy Efficiency: The premium polyurethane tread exhibits minimal deformation under heavy loads, ensuring an extremely low coefficient of rolling resistance. This reduces the power consumption of the drive motor and minimizes frictional losses within the mechanical system.
3. Superb Shock Absorption & Low Noise: The elastic polyurethane layer effectively absorbs impacts and vibrations caused by rail joints or minor track irregularities. It dampens running noise (typically reducing it to below 65–70 dB), thereby protecting expensive, precision electronic components on the crane, such as servo motors and laser rangefinders.
4. High Wear Resistance & Track Protection: Compared to traditional pure steel wheels, polyurethane travel wheels provide sufficient friction to prevent slipping while eliminating wear on the floor or steel rails, significantly extending the lifespan of the warehouse rail system.
Common Structures & Design Types
To meet the diverse driving and guiding requirements of stacker cranes, this product line generally includes the following designs:
Drive & Load Wheels: Serving as the primary travel wheels, these usually feature a flat tread design and are directly connected to the drive shaft to transmit high torque. The wheel cores are engineered with precision keyways or splines to ensure transmission accuracy during high-frequency forward and reverse rotations.
Guide Wheels / Side Guide Wheels: Installed at the top or bottom sides of the stacker crane, these wheels hug the sides of the track to prevent snaking, swaying, or tilting when the crane travels at high speeds. Guide wheels are generally smaller than the main load wheels but require high rotational responsiveness and exceptional resistance to lateral impacts.
Key Technical Parameters
The table below features our standard range of high-speed stacker crane wheels. Engineered with a high-strength steel casting core and premium polyurethane elastomer tread, these wheels offer exceptional dynamic capacity and extended service life.
| Model | Dimension | Wheel diameter (mm) | Wheel width (mm) | Axle dimension (mm) | Load capacity (kgs) |
| SC85 | 85 × 85 | 85 | 85 | 20 | 600 |
| SC110 | 110 × 35 | 110 | 35 | 20 | 300 |
| SC200 | 200 × 70 | 200 | 70 | 30 | 1100 |
| SC250 | 250 × 100 | 250 | 100 | 40 | 2000 |
| SC360 | 360 × 120 | 360 | 120 | 50 | 3500 |
| SC400 | 400 × 150 | 400 | 150 | 60 | 4800 |
Application Scenarios
This product is custom-engineered for high-frequency, highly automated logistics and warehousing environments, and is widely utilized in:
1. Large-Scale AS/RS Automated High-Bay Warehouses: Industries such as tobacco, pharmaceuticals, new energy batteries, automotive parts, etc.
2. Cold Chain Logistics Storage: Utilizing a low-temperature resistant, specially formulated polyurethane, the wheels maintain excellent elasticity and grip even in cold storage environments down to -30℃ without hardening or cracking.
3. High-Speed Intensive Fulfillment Centers: Seamlessly pairing with various stacker cranes, shuttles, and heavy-duty material handling equipment for high-speed operations.
OEM & Customization Services
The models listed above represent our standard configurations. To satisfy diverse engineering requirements across various AS/RS crane designs, we provide fully tailored custom solutions:
1. Dimensions & Geometry: Custom wheel diameters, tread widths, specific axle dimensions can be precisely manufactured based on your technical drawings.
2. Polyurethane Formulations: Treads can be optimized for hardness, high-speed dynamics and severe operating temperatures to eliminate risks of heat build-up or debonding.
3. Wheel Core Engineering: While precision steel castings are standard, we can modify core designs and heat-treatment specifications to accommodate ultra-heavy payloads and high starting torques.
Please contact our engineering team to discuss your specific drawings and technical specifications.
