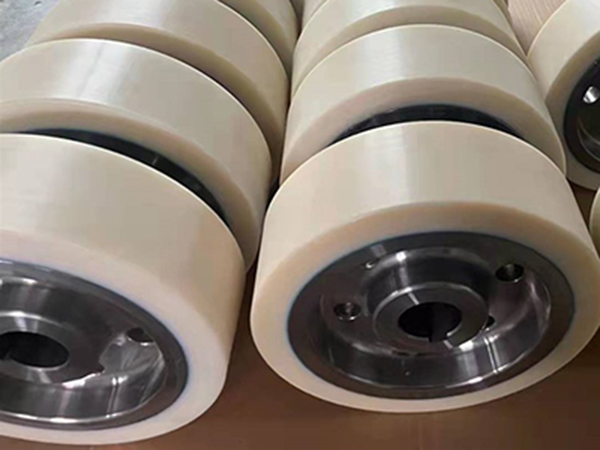

A Stacker Load Wheel is a heavy-duty industrial wheel designed to support the massive weight of a stacker crane and its cargo. These wheels are typically located on the bottom horizontal beam of the crane, running along a ground rail. Their primary job is to provide smooth, linear motion while bearing static and dynamic loads that can range from several hundred kilograms to tens of tons.
Key Technical Characteristics
To survive the rigorous demands of 24/7 warehouse operations, these wheels must meet specific "industrial specification" standards:
1. High Load Capacity: They must support not just the dead weight of the steel structure, but also the dynamic forces generated during rapid acceleration and emergency braking.
2. Precision Geometry: The concentricity and surface finish of the wheel are vital. Any deviation can lead to vibration, which interferes with the laser positioning systems used by the crane.
3. Low Rolling Resistance: Efficient movement reduces energy consumption and minimizes wear on the drive motors.
4. Acoustic Insulation: In modern facilities, reducing noise levels is a priority. This is why high-performance synthetic materials are often preferred over solid steel.
Technical Specifications
| Model | Dimension | Wheel diameter (mm) | Wheel width (mm) | Axle dimension (mm) | Load capacity (kgs) |
| SC70/40/20 | 70 × 40 | 70 | 40 | 20 | 200 |
| SC85/70/20 | 85 × 70 | 85 | 70 | 20 | 500 |
| SC450/150/80 | 450 × 150 | 450 | 150 | 80 | 5400 |
| SC500/150/80 | 500 × 80 | 500 | 80 | 80 | 6000 |
| SC400/100/60 | 400 × 100 | 400 | 100 | 60 | 3200 |
| SC250/80/40 | 250 × 80 | 250 | 80 | 40 | 1600 |
Material Science: Why Polyurethane (PU)
While steel wheels were common in early industrial designs, modern stacker cranes almost exclusively use Polyurethane-bonded wheels.
1. Bonding Strength: The core is usually made of high-strength cast iron or forged steel, with a thick layer of specialized polyurethane chemically bonded to it. This prevents "debonding" under high-speed friction.
2. Flat Spot Resistance: High-quality PU formulations prevent the wheel from deforming if the crane remains stationary with a full load for an extended period.
3. Floor & Rail Protection: PU wheels provide a cushioning effect, significantly extending the service life of the expensive floor rails and the crane’s mechanical components.
Conclusion
The Load Wheel for Stacker is a heavy-duty industrial wheel designed to support the massive weight of a stacker crane and its cargo. is a masterpiece of non-emotional, functional engineering. By prioritizing high-performance materials like heavy-duty polyurethane and ensuring precision manufacturing, logistics managers can ensure their automated systems run at peak efficiency with minimal downtime. For any ASRS project, the quality of the wheel is never a place to cut costs—it is an investment in the reliability of the entire supply chain.
