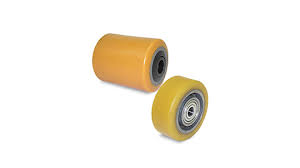

“High-performance polyether or PPDI-based polyurethane guide rollers engineered to prevent degradation, cracking, and de-bonding in high-humidity, wash-down, or marine environments.”
In modern agricultural logistics, Controlled Atmosphere (CA) automated warehouses are used to prolong the shelf life of fruits, vegetables, and perishables. To prevent produce from drying out, industrial humidifiers are used to maintain extreme relative humidity levels—often reaching up to 95% RH.
While this environment keeps produce fresh, it is catastrophic for standard material handling equipment. Constant exposure to heavy moisture and condensation triggers a chemical breakdown in standard rollers known as hydrolysis.
Our hydrolysis resistant polyurethane guide rollers are specifically formulated to survive these high-humidity automated storage and retrieval systems (AS/RS), ensuring non-stop operations without tracking failure or tread de-bonding.
The Hidden Danger of High Humidity on Stacker Crane Rollers
Standard polyester-based polyurethane rollers absorb moisture from the air. In a 95% humidity environment, the water molecules break the ester bonds in the chemical chain.
What happens to untreated rollers in fruit and vegetable gas storages?
Surface Stickiness and Softening: The tread loses its structural integrity and weight-bearing capacity.
Tread De-bonding (Peeling): The material expands and delaminates from the aluminum or steel wheel core.
Flat Spots and Vibrations: If a heavy stacker crane is parked overnight, the softened wheel permanently deforms, causing bumpy operation when it restarts.
To counter these issues, we transition from standard polyester to high-grade Polyether systems and PPDI/NDI prepolymers, which are chemically immune to water attack and hydrolysis.
Technical Specifications for Humid Controlled Environments
Specifications | Standard AS/RS Rollers | High-Humidity & CA Cold Storage Options |
Prepolymer Base | Polyester-Based (TDI/MDI) | Polyether-Based / NDI / PPDI (Hydrolysis-Proof) |
Hardness Range | 85 Shore A to 90 Shore A | 93 Shore A to 95 Shore A |
Moisture Resistance | Standard | Ultra-High Resistance (Zero degradation at 95%+ RH) |
Operating Temperature | 0°C to +40°C | -5°C to +40°C (Optimized for produce preservation) |
Core Material Hub | Aluminum / Cast Iron | Machined Steel / Corrosion-Resistant Coated Hubs |
Why Fruit and Vegetable Preservation Warehouses Rely on Our Rollers
Zero Swelling and Cracking: Our polyether formulations ensure the guide wheel dimensions remain perfectly stable, preventing tracking errors on the steel rails.
Corrosion-Resistant Metal Hubs: In addition to the water-resistant polyurethane tread, we offer stainless steel or surface-treated cores to prevent rust in high-moisture air.
Sanitary and Non-Marking: Clean movement that leaves no black marks or chemical residue on the floors or guide rails.
Custom In-House Engineering for Smart Agriculture
Fruit and vegetable ripening centers utilize complex automation with single-deep cranes and multi-tier pallet shuttles. Our in-house engineering and R&D team can customize:
Polyurethane tread thickness and Shore A/D hardness based on your crane's acceleration.
Corrosion-resistant coatings on metal hubs (such as zinc plating or chemical blackening).
Precision bearing fit dimensions for seamless OEM replacement.
FAQ: Rollers for Controlled Atmosphere Warehouses
Q: Can standard wheels be coated to make them hydrolysis resistant?
A: No. Hydrolysis resistance is a molecular property of the raw material itself, not a surface coating. You must use a true polyether or PPDI-based polyurethane to prevent internal structural failure.
Q: How can we request replacements for our existing OEM ripening-room stacker cranes?
A: Provide us with the outer diameter, width, bearing seat dimensions, and axle load of your current wheel hubs. Our engineering team can supply direct-fit, hydrolysis-resistant polyurethane replacement rollers.
